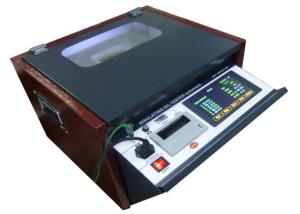

Name: 80kV Electrical Test Equipment Oil Breakdown Voltage BDV Tester
Brand: YUYANG
Price: 2700 USD

Brand Name : YUYANG

Model Number : BDV-2

Certification : ISO

Place of Origin : China

MOQ : 1 Set

Price : USD2700

Supply Ability : 100 SETS PER MONTH

Delivery Time : 15 DAYS

Packaging Details : PLYWOOD CASE

Keyword : Breadown voltage tester,bdv tester,withstand voltage tester,dielectric strength tester

Test standard : IEC156,ASTM D1816 , ASTM D877 etc

Output voltage : AC 0V~80KV or 0~100KV

Size : 550 mm*500mm*580mm

Weight : 38kg

Warranty : 1 year

Contact Now

IEC156 80kV Transformer Oil Breakdown Voltage BDV Tester

I.Introduction:

It is designed according to IEC156 Insulating Oil Dielectric Strength Test Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
This transformer oil breakdown voltage tester has large LCD display, all the selection can be done by touch panel with color LCD;
This insulation oil BDV testesr also has micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
This transformer oil withstand voltage tester is multi-functional, stable, and easy for operation

II.Specifications:

No.	Parameters	Specifications
1	Output voltage	AC 0V~80KV or 0~100KV
2	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3	Max. test times	9
4	Stir time	0~999s
5	Wait time	0~999s
6	Measurement accuracy	±(1% of full scale + 2 digits)
7	Resolution	0.1KV
8	Temperature measurement range	0°C to 70°C, or better
9	Temperature resolution	1°C, or better
10	Data storage	100 groups
11	Weight	38kg
12	Size	550 mm500mm580mm
13	Power supply	AC220V, 50Hz
14	Working environment	Room temperature to 45°C, humidity<85%

80kV Electrical Test Equipment Oil Breakdown Voltage BDV Tester
